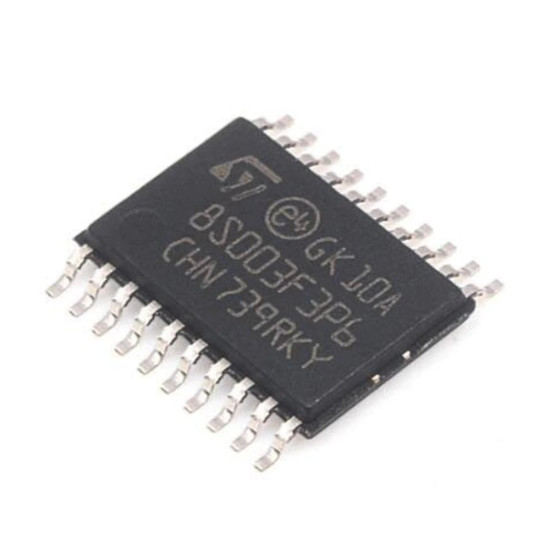

STM8S003F3P6

ST STM8S003F3P6 TSSOP-20 8 Kbytes Flash 16 MHz

8-bit MCU CPU 16 I/O Mainstream Value Line Integrated EEPROM

Description The STM8S003F3/K3 value line 8-bit microcontrollers offer 8 Kbytes of Flash program memory, plus integrated true data EEPROM. They are referred to as low-density devices in the STM8S microcontroller family reference manual (RM0016). The STM8S003F3/K3 value line devices provide the following benefits: performance, robustness and reduced system cost. Device performance and robustness are ensured by true data EEPROM supporting up to 100000 write/erase cycles, advanced core and peripherals made in a state-of-the-art technology at 16 MHz clock frequency, robust I/Os, independent watchdogs with separate clock source, and a clock security system. The system cost is reduced thanks to a high system integration level with internal clock oscillators, watchdog, and brown-out reset. Full documentation is offered as well as a wide choice of development tools.

• All features
• Core
• 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
• Extended instruction set
• Memories
• Program memory: 8 Kbyte Flash memory; data retention 20 years at 55 °C after 100 cycles
• RAM: 1 Kbyte
• Data memory: 128 bytes true data EEPROM; endurance up to 100 k write/erase cycles
• Clock, reset and supply management
• 2.95 V to 5.5 V operating voltage
• Flexible clock control, 4 master clock sources
• Low-power crystal resonator oscillator
• External clock input
• Internal, user-trimmable 16 MHz RC
• Internal low-power 128 kHz RC
• Clock security system with clock monitor
• Power management
• Low-power modes (wait, active-halt, halt)
• Switch-off peripheral clocks individually
• Permanently active, low-consumption power-on and power-down reset
• Interrupt management
• Nested interrupt controller with 32 interrupts
• Up to 27 external interrupts on 6 vectors
• Timers
• Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization
• 16-bit general purpose timer, with 3 CAPCOM channels (IC, OC or PWM)
• 8-bit basic timer with 8-bit prescaler
• Auto wakeup timer
• Window and independent watchdog timers
• Communications interfaces
• UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode
• SPI interface up to 8 Mbit/s
• I2C interface up to 400 Kbit/s
• Analog to digital converter (ADC)
• 10-bit ADC, ± 1 LSB ADC with up to 5 multiplexed channels, scan mode and analog watchdog
• I/Os
• Up to 28 I/Os on a 32-pin package including 21 high-sink outputs
• Highly robust I/O design, immune against current injection
• Development support
• Embedded single-wire interface module (SWIM) for fast on-chip programming and non-intrusive debugging

Paket içeriği

1 Adet STM8S003F3P6

• Series: STM8S003F3
• Mounting Style: SMD/SMT
• Package/Case: TSSOP-20
• Core: STM8
• Program Memory Size: 8 kB
• Data Bus Width: 8 bit
• ADC Resolution: 10 bit
• Maximum Clock Frequency: 16 MHz
• Number of I/Os: 16 I/O
• Data RAM Size: 1 kB
• Operating Supply Voltage: 2.95 V to 5.5 V
• Minimum Operating Temperature: - 40 C
• Maximum Operating Temperature: + 85 C
• Packaging: Tube
• Brand: STMicroelectronics
• Data RAM Type: RAM
• Data ROM Size: 128 B
• Data ROM Type: EEPROM
• Interface Type: I2C, SPI, UART
• Number of ADC Channels: 5 Channel
• Number of Timers/Counters: 3 Timer
• Processor Series: STM8S
• Product Type: 8-bit Microcontrollers - MCU
• Program Memory Type: Flash
• Subcategory: Microcontrollers - MCU
• Supply Voltage - Max: 5.5 V
• Supply Voltage - Min: 2.95 V
