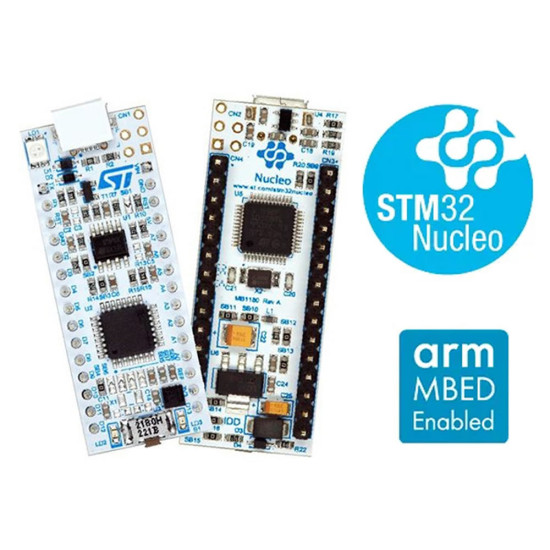

NUCLEO-L432KC

ST NUCLEO-L432KC

STM32 32 Bit 80 MHz Arm Cortex M4 STM32L432KC Geliştirme Kiti ST-LINK V2 Jtag Programlayıcı Arduino Nano Uyum

The STM32 Nucleo-32 board provides an affordable and flexible way for users to try out new concepts and build prototypes by choosing from the various combinations of performance and power consumption features, provided by the STM32 microcontroller.

The Arduino™ Nano V3 connectivity support allows the easy expansion of the functionality of the STM32 Nucleo open development platform with a wide choice of specialized shields.

The STM32 Nucleo-32 board does not require any separate probe as it integrates the ST-LINK debugger/programmer.

The STM32 Nucleo-32 board comes with the STM32 comprehensive free software libraries and examples available with the STM32Cube MCU Package.

Microcontroller Features

• STM32L432KC in UFQFPN32 package
• ARM®32-bit Cortex®-M4 CPU
• 80 MHz max CPU frequency
• VDD from 1.65 V to 3.6 V
• 256 KB Flash
• 64 KB SRAM
• Timers General Purpose (4)
• SPI/I2S (2)
• I2C (2)
• USART (2)
• 12-bit ADC with 10 channels (1)
• GPIO (20) with external interrupt capability
• RTC

Nucleo Features

• Two types of extension resources
• Arduino Uno Revision 3 connectivity
• STMicroelectronics Morpho extension pin headers for full access to all STM32 I/Os
• On-board ST-LINK/V2-1 debugger/programmer with SWD connector
• Selection-mode switch to use the kit as a standalone ST-LINK/V2-1
• Flexible board power supply
• USB VBUS or external source (3.3 V, 5 V, 7 - 12 V)
• Power management access point
• User LED (LD3)
• One push button: RESET
• USB re-enumeration capability: three different interfaces supported on USB
• Virtual Com port
• Mass storage (USB Disk drive) for drag'n'drop programming
• Debug port

Paket İçeriği

1 Adet NUCLEO-L432KC Kit

Dikkat = Paket içerisinden usb kablo çıkmaz.
