LAUNCHXL-F28069M TMS320F28069M LaunchPad

Texas LAUNCHXL-F28069M TMS320F28069M LaunchPad

F28069M C2000 Piccolo Mcu 90 MHz 256Kb Flash Geliştirme Kartı XDS100v2 JTAG Debug Probe Programlayıcı

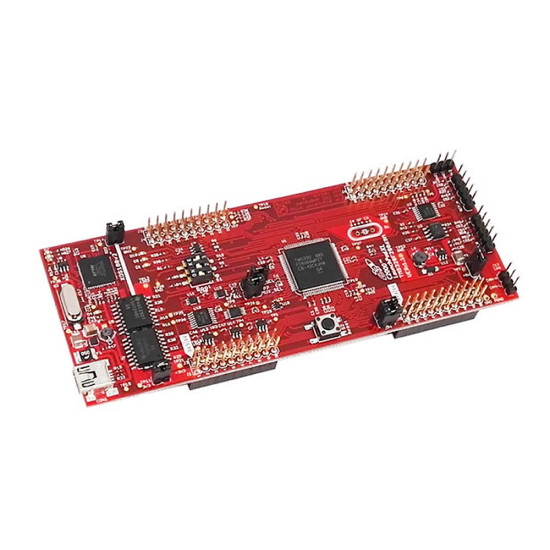

LAUNCHXL-F28069M is a low cost evaluation and development tool for the Piccolo F2806x series as well as the InstaSPIN-FOC and InstaSPIN-MOTION enabled Piccolo F2806x series in the TI MCU LaunchPad ecosystem which is compatible with various plug-on BoosterPacks. This extended version of the LaunchPad supports the connection of two BoosterPacks. The LaunchPad provides a standardized and easy to use platform to use while developing your next application.

Features

• USB connected isolated XDS100v2 JTAG debug probe for real-time debug and flash programming
• 4x 20-pin headers/connectors
• Programmable buttons and LEDs
• TMS320F28069M: 90 MHz C28x CPU, 256 KB Flash, InstaSPIN-FOC and InstaSPIN-MOTION enabled, 12-bit ADC, CAN, 2x encoder interface (eQEP), UART, SPI, and more
• Supports two BoosterPacks
• Two encoder interface connectors
• Isolated CAN transceiver connector

Software features

• Free download of Code Composer Studio IDE
• Free download of MotorWare for InstaSPIN-FOC and InstaSPIN-MOTION example projects
• Free download of controlSUITE [and C2000Ware] for device drivers and example projects
• MathWorks Embedded Target Support
• Training video: two motors using LAUNCHXL-F28069M and two BOOSTXL-DRV8301
• solidThinking Embed Support
• Training Video: PMSM control series, including InstaSPIN-FOC
• Powersim PSIM Support
• InstaSPIN Processor-in-the-Loop (PIL) and code generation feature

Recommended BoosterPacks

• BOOSTXL-DRV8301
• BOOSTXL-DRV8305EVM
• BOOSTXL-BUCKCONV
• TI BoosterPack Checker for an interactive list of compatible BoosterPacks

Get started

For InstaSPIN Download and install MotorWare. Run MotorWare.exe Browse resources and read Readme First for F28069M LaunchPad and any BoosterPack. Follow Training à InstaSPIN Projects and Labs User’s Guide. Install free GUI for instrumenting MotorWare projects. Watch 6 part training series or search for other training

What's Included

• Piccolo F28069M Launchpad
• Mini USB Cable
• Quick Start Guide
