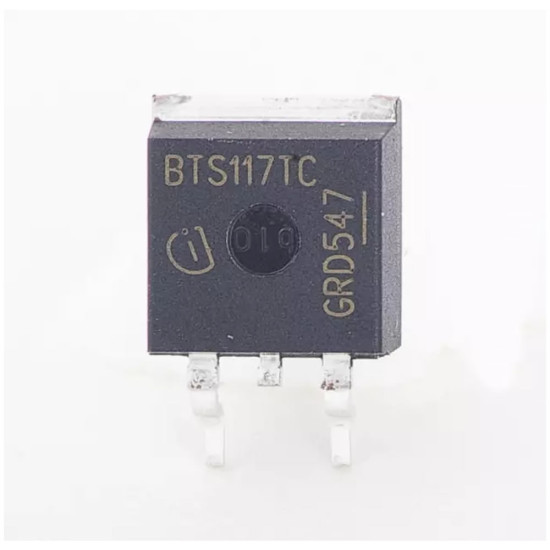

BTS117TC HITFET 60V 3.5A

BTS117TC HITFET 60V 3.5A N Channel

Logic Level Input Power FET Power Switch Distribution HITFET Embedded Protection Functions

HITFET™ - Fully Protected Universal Switch

The Infineon HITFET™ and Infineon SPEED TEMPFET™ enable more protection for low-side applications. Depending on the level of protection required, the developer can choose between HITFET™ and SPEED TEMPFET™.

Provide a higher level of protection with overtemperature, short circuit, overcurrent, overvoltage and ESD. HITFET™ combines all these protection features in one easy-to-use device. With these features and Infineon‘s reknowned quality and reliability you can be confident the HITFET™ can meet even the most challenging application requirements.

Summary of Features

• Logic Level Input
• Input Protection (ESD)
• Thermal shutdown with latch
• Overload protection
• Short circuit protection
• Overvoltage protection
• Current limitation
• Status feedback with external input resistor
• Analog driving possible
• AEC qualified
• Green product (RoHS compliant)

BTS117TC

Channels

1.0

VDS

max

60.0 V

ID

3.5 A

RDS (on)

max

100.0 mΩ

ID(lim)

min

7.0 A

ISC

max

25.0 A

Ptot

max

50.0 W

ton

max

70.0 µs

toff

max

150.0 µs

Operating Temperature

• min
• max

• 40.0 °C
• 150.0 °C

Mounting

SMT

• Switch Type General Purpose
• Number of Outputs 1
• Ratio - Input:Output 1:1
• Output Configuration Low Side
• Output Type N-Channel
• Interface On/Off
• Voltage - Load 60V (Max)
• Voltage - Supply (Vcc/Vdd) Not Required
• Current - Output (Max) 3.5A
• Rds (On) 80 mOhm
• Input Type Non-Inverting
• Features -
• Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
• Operating Temperature -40°C ~ 150°C (TJ)
• Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
